DoubleWise/SOLAR RUNWAY GUARD LIGHT

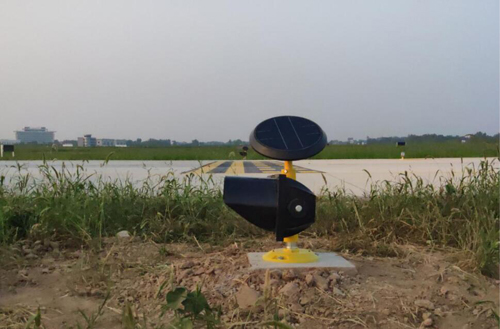

The Runway Guard Light is a pair of unidirectional, yellow, alternately flashing lights that provide a distinctive warning to pilots and drivers of vehicles that they are operating on taxiways and are about to enter an active runway. This solar elevated runway guard light(ERGL) is compliant to these standards: ICAO Annex 14,Volume I and FAA 150/5345-46E. It can be installed easily without trenching and cabling.

Features and Benefits

● Provides unidirectional marking with 45~50 alternating yellow flashes per minute at the hold position of taxiway and runway intersections.

● The two ERGL light sources are surrounded by a black face plate and independent visors to reduce the amount of incident sunlight.

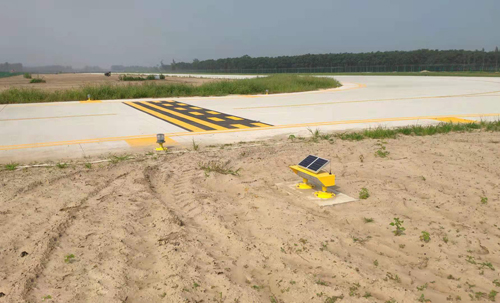

● Typically installed in a pair,with one on either side of the taxiway holding position.

● 3-step intensity adjustment by a remote controller.

● High-efficiency solar panel and long-lasting Lithium battery.

● The minimum autonomy or operational period without charging is more than 120Hrs.

● Manufactured by ISO 9001:2015.

SPECIFICATIONS
Light Output	180°, Yellow, alternately flashing
Intensity Adjustment	Adjustable Low/Medium/High
Light Source	LED
Minimum Autonomy	High-intensity:45hrs ; Medium-intensity:70hrs ;Low-intensity: 120hrs
Latitude Range	55°S to 55°N
On/Off Level	60/100 Lux
Lifespan of LEDS	up to 50,000 Hours
Solar panel	Maximum Power 7.2Wp；Efficiency 20%
Battery	Lithium, replaceable；16Ah/7.2V
Lens Material	Polycarbonate
Mounting Option	3 bolts
Weight	9kg
Temperature Range	-40℃ to +80℃
Waterproof	IP65
Quality Assurance	ISO9001:2015
Patents	Chinese patent: 201320285073.0
Trademark	is a registered trademark of Double Wise.

CASE STUDIES for Solar Airport Lighting >>>

Other Related Products

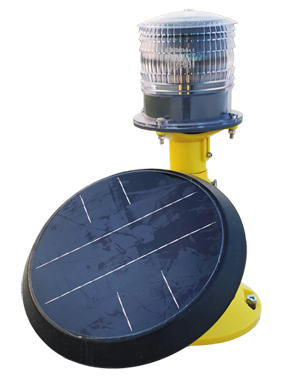

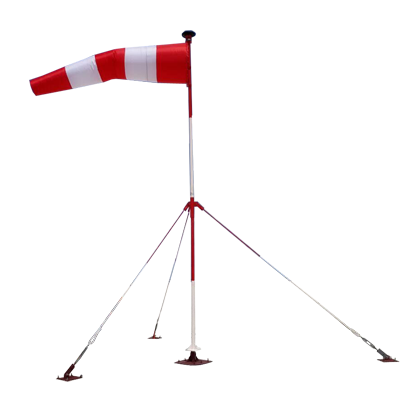

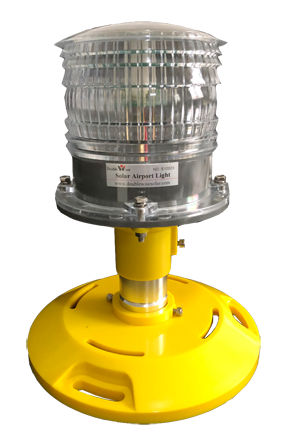

Solar Windsock	Solar Runway Edge Light	Medium-intensity Runway Edge Light
