6NM SOLAR POWERED MARINE NAVIGATION LIGHT







The solar powered Led marine navigation light DWS305 is specially designed as the navigational signal light of non-powered ships such as Barges, Tugs and so on. It complies with the COLREGS (1972), UL1104 and EN60945 (2002) standards, with a visibility of more than 6 Nautical Miles and an autonomy 200 hours. The led marine light has the characteristics of solar self-contained, durability, UV resistance and easy installation. If necessary, this solar marine signal light can also be equipped with the GPS , Bird driving or Remote controlling functions.

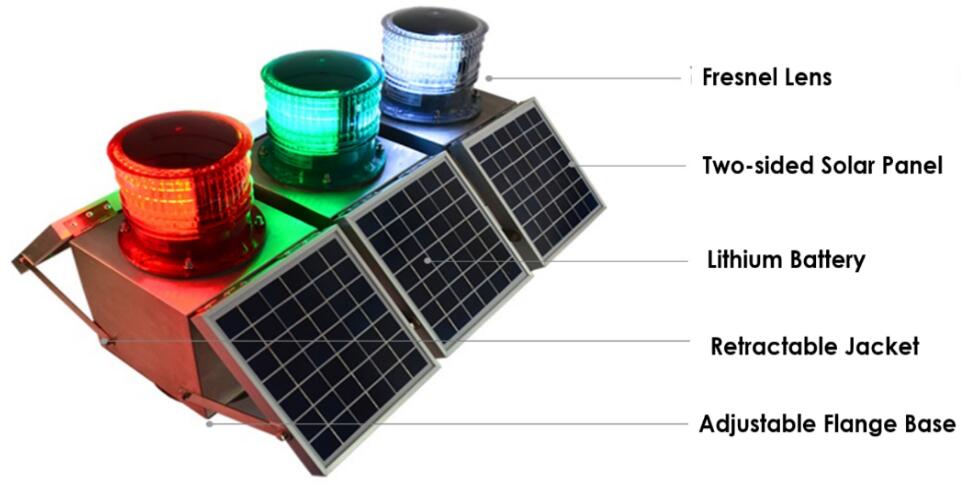

Features and benefits



High configuration,over the top performance.

Visibility: 6NM & Autonomy: 200Hrs
Solar panel 12Wp, replaceable Lithium battery 16Ah/7.2V.



♥ ♥ Dual Redundancy

The fail-tolerant solar energy system
is composed of two set of duplicated units.

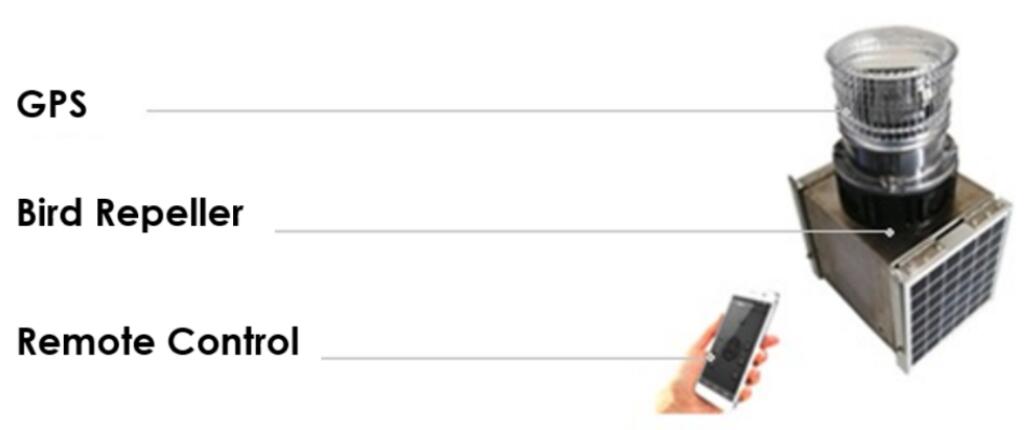

♥♥♥  Versatile add-on functions

GPS, Bird Repeller or Remote Controlling.

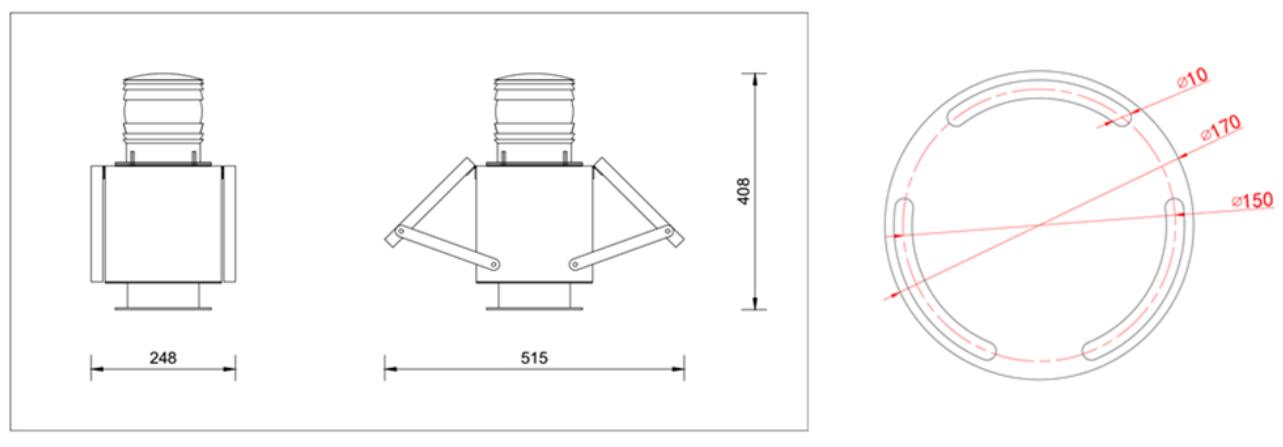

Structure & Dimension























SPECIFICATIONS







SPECIFICATIONS

MODEL

DWS305

Solar Led Marine Navigation Light

Light Output

112.5°、135°、225°、360°

Visibility

6 NM

Minimum Autonomy

200 hrs

Source

Ultra-intensity LED



Average Intensity

White:260cd;Red:180cd ;Green:300cd;Amber:155cd

Operation

Latitude Range

55°S  to  55°N

On/Off Level

60/100 Lux

Lifespan of LEDS

up to 30,000 Hours

Solar panels

Mono-crystalline;12Wp;Efficiency 20%

Battery

Lithium , replaceable;Capacity:16Ah/7.2V

Construction

Lens

Lens Material: Poly-carbonate

Mounting

3 bolts

Weight

7.8kg

Temperature Range

-40℃ to +80℃

Waterproof

IP65

Quality Assurance

ISO9001:2015

Chinese Patents

201320285073.0

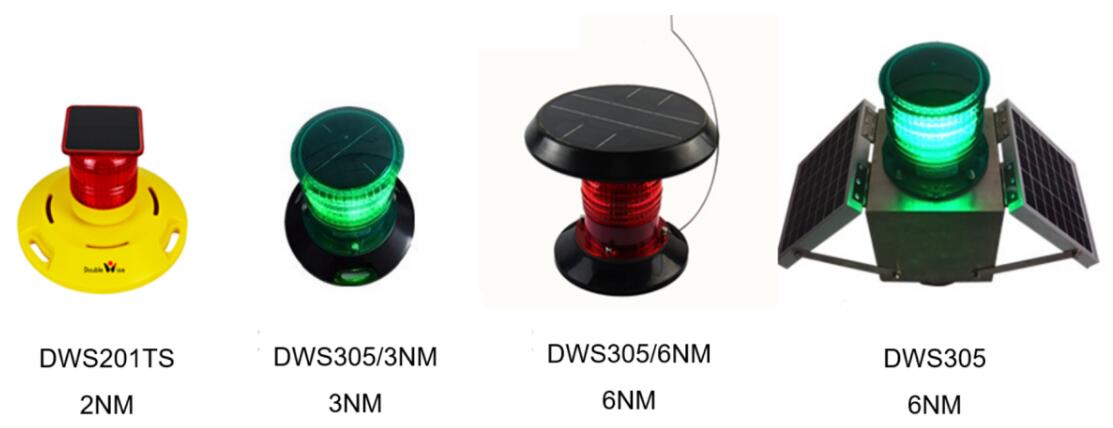

Related Products

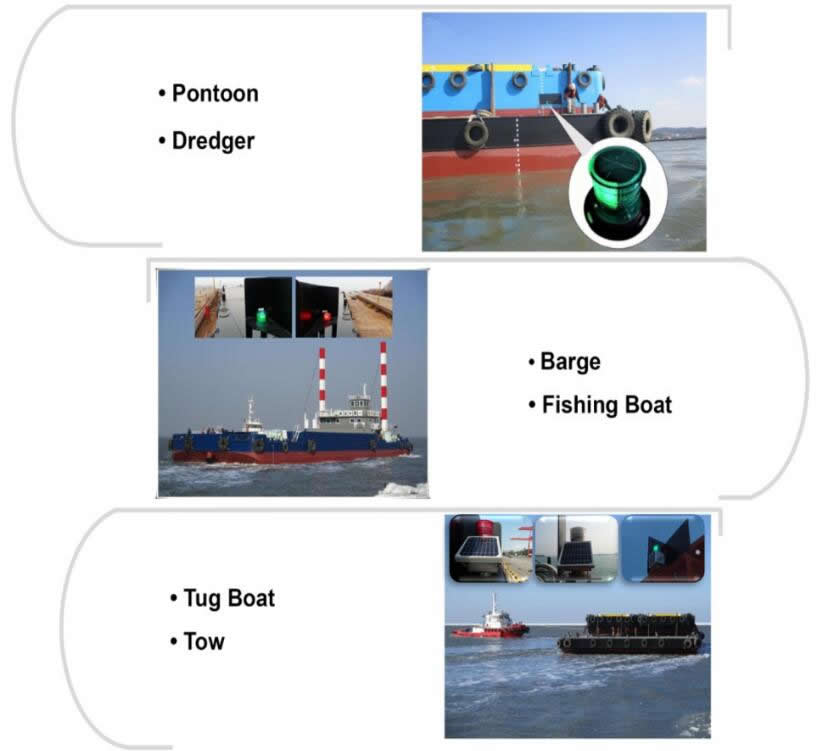

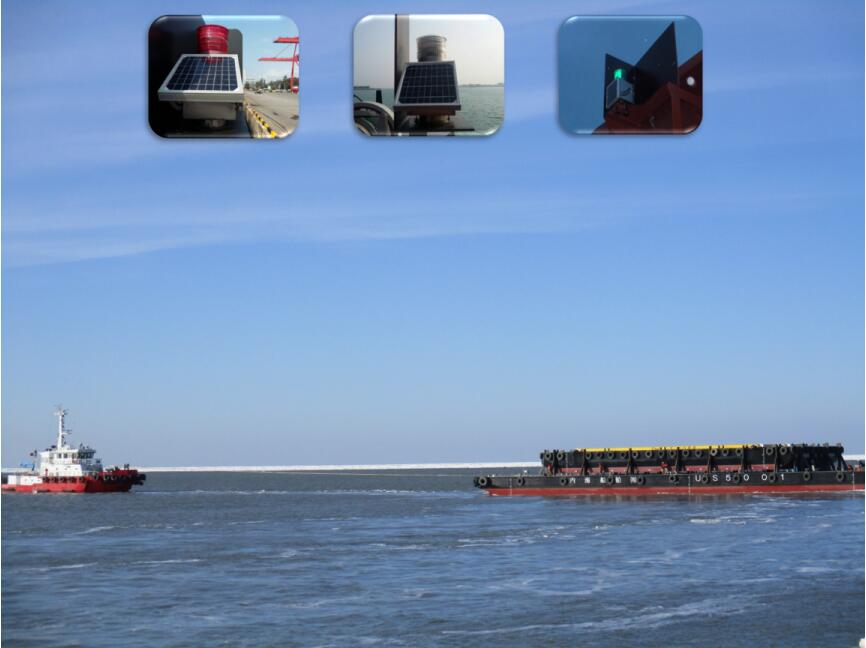

Typical Application















FAQ







1.What kind of vessels are suitable for using solar navigation light?


Using solar navigation lanterns is a best choice for non-powered vessels such as barge, Dredger, Tug or Tow boats etc..




2.What kind of non-powered boat is this light DWS305 suitable for?


In general, this solar marine navigation light DWS305 is more suitable for larger Dumb Barge more than 50 meters.




3.Please explain the solar marine navigation light with a bird repeller DWS305B.


Pest bird infestations can result in property damage and health hazards in the field of Barges, Ports etc..
Combining Solar, LED, Sonic and Ultrasonic technology, DOUBLEWISE has developed a unique solar barge navigation light DWS305B with an electronic bird repeller which provides an effective, low-cost and environment-friendly bird control solution for non-powered barges. The device can produce extremely realistic audio-visual threats that frighten, irritate, and disorient birds, forcing them to seek calmer, untreated areas. Electronic bird deterrents condition pest birds to stay away from treated areas for good.
The solar self-contained design makes DWS305B simple and durable, easy to use and install. It is a bird repellent device in the daytime and can be equipped with Led lighting complied with COLREGS (1972) standards at night to play the role of Barge Navigation Lights.
