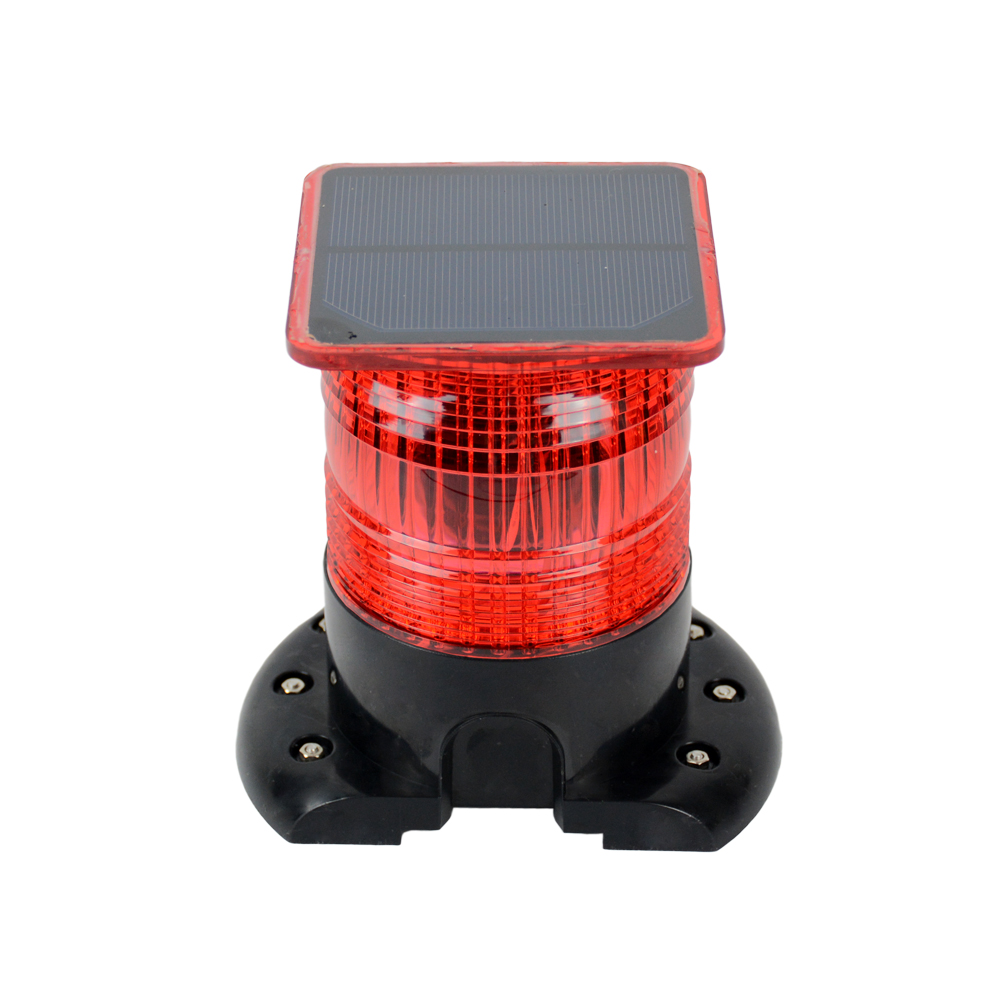

SOLAR LED BOAT NAVIGATION LIGHT







The Solar LED Boat Navigation Light DWS3052NM is a 2NM solar boat light with three colors specially designed as the navigational signal light of small boats such as yachts and fishing boats. This LED boat light complies with COLREGS(1972) and can easily be mounted on a top of outboard small engine by 6 Bolts and/or Magnet. It has the characteristics of self-contained solar, durable ,anti-UV and easy-operation.





The boat equipment can be set as 9 boat lights through the touch switch at its bottom:



  1. Tricolor navigation light: 112.5° Red + 112.5°Green + 135°White = 360°;



  2. All-round light: 360 ° white , as an Anchor light;



  3. Port light : 112.5 ° Red;



  4. Starboard light : 112.5 ° Green;



  5. Stern light : 135 ° White;



  6. Masthead light : 225 ° White;



  7. Bicolor navigation light: 112.5° Red + 112.5°Green;



  8. Flashing light : 360 ° White, as a Warning light;



  9. SOS Signal light : 360 ° White, as a SOS Emergency light.







Features and benefits





One light with nine functions;

Visibility: 2NM & Autonomy: 100 Hours.
Turns on at dusk and off at dawn automatically.

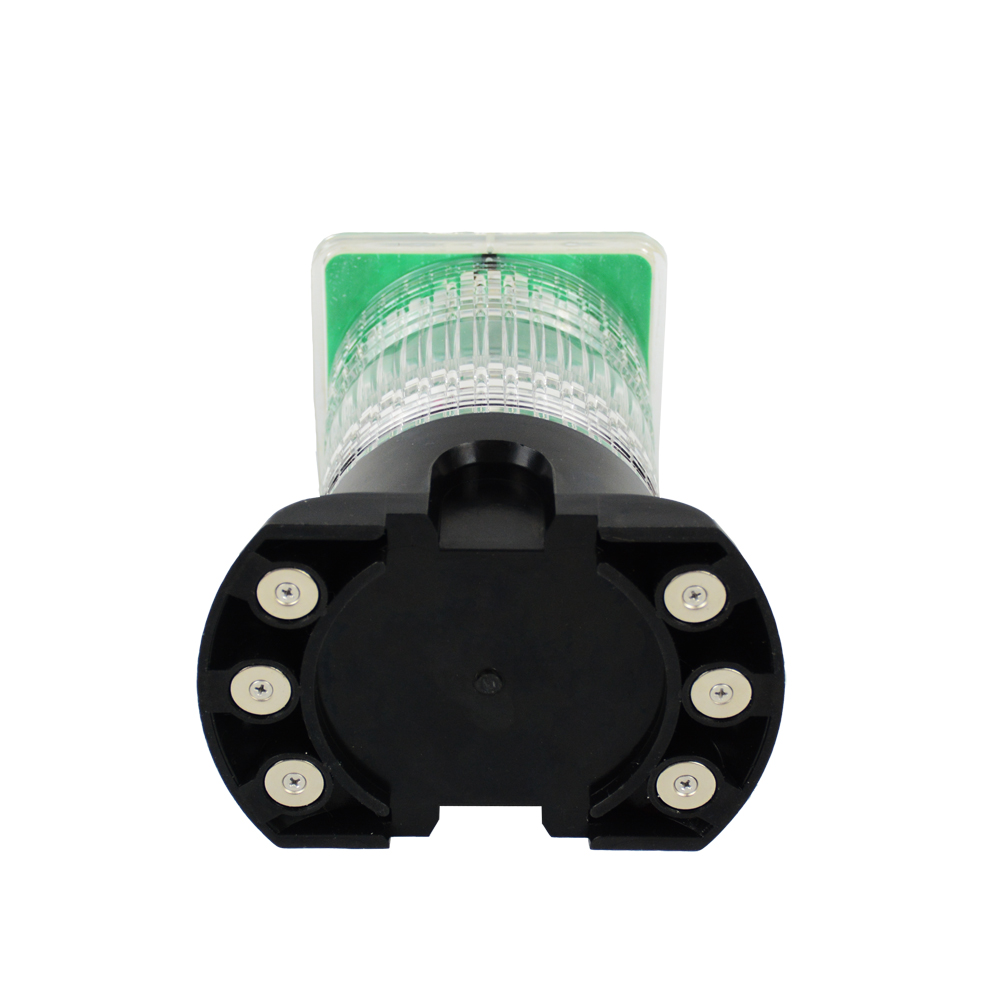

♥ ♥ Two modes of installation;

6 Bolts and/or 6 Magnets.
Completely solar self-contained without cabling.



♥♥♥  Three colors available.
Red, Green and White LEDs inside it.
Navigational signal or Emergency warning signal.







SPECIFICATIONS







SPECIFICATIONS

Light Output

One of 9 kinds of light Output

Visibility

2NM

Minimum Autonomy

100hrs

Latitude Range

50°S  to  50°N

Source & its Lifespan

LED & up to 50,000 Hours

Solar panels

Mono-crystalline;Maximum Power 1.1Wp;Efficiency 20%

Battery

Ni-Mh , replaceable;2.4Ah/2.4V

Lens Material  / Waterproof

Polycarbonate / IP65

Mounting Option

Bolts and/or Magnet

Dimension / Weight

120mm*120mm*140mm / 0.6kg

Temperature Range

-40℃ to +80℃

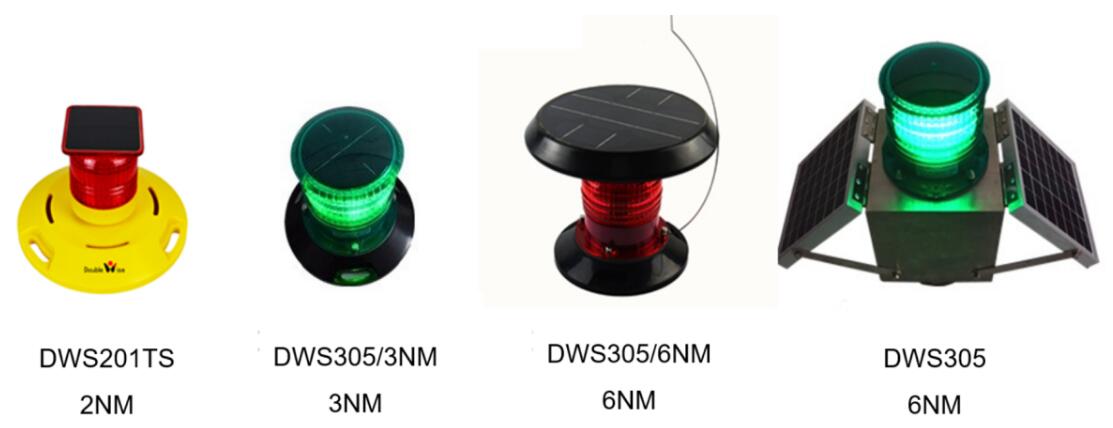

Related Products

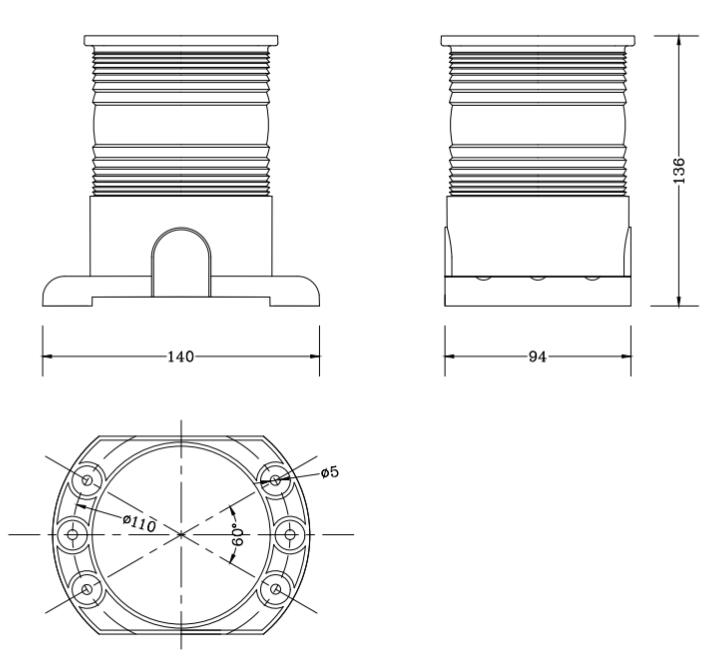

Dimension









FAQ





1.What kind of boats is this light DWS3052NM suitable for?

In general, the solar boat navigation light DWS3052NM is more suitable for small boats such as Yachts, Fishing boats etc..



2.Under what circumstances should emergency warning lights be used?

The 9 functions of the solar boat light DWS3052NM are divided into two categories: Navigation signal light and Emergency warning light. The selection of a certain function can be confirmed through the Touch switch at the bottom of the light.
In cases of emergency, such as engine failure, hull damage, etc., the flashing light (No. 8) or SOS signal light (No .9) can be selected to warn or inform the surrounding vessels.

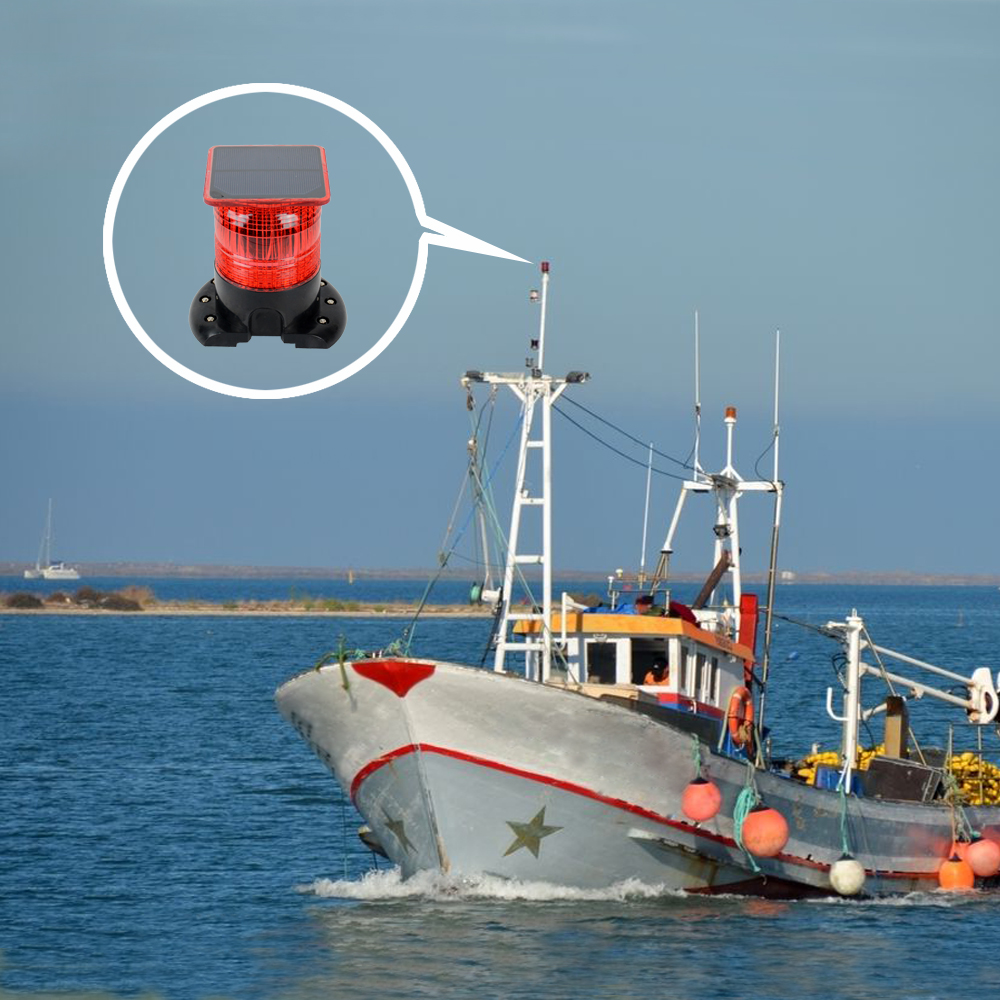

Typical Applications
