DWSA605 is an airport solar runway threshold light that complies with ICAO Annex 14 Volume Ⅰand FAA .It meets traditional airport requirements in a low-cost, easy-to-install and low-maintenance way.Because of the characteristics of self-contained, durable and anti-UV,it can be widely used for Aeronautical Ground Lighting system without High-voltage and cabling. It has operated and tested maintenance-free for many years in some airports including Maldives,Canada and China etc.





Features and Benefits



The Wireless Control Terminal provides on-demand operations from up to 4Km away.


Color in 180° white +180° yellow ,180° Red +180° Green or 180° white +180° white.


3-step intensity adjustment.


High-efficiency mono-crystalline solar panel and long-lasting Lithium battery.


Lens is made from durable,anti-UV Bayer® polycarbonate.


Optional NVG operations.


Manufactured to ISO9001:2015 QAS and certified CE.



Typical Applications



Runway Edge Light
AT-VASIS
Runway Threshold Light
T-Type Light



Specifications



Main Specifications
Light Output
360°, STEADY ON
Intensity Adjustment
Adjustable Low/Medium/High
Colors
Runway Edge: White /Yellow ,or White/White

Runway Threshold: Red/Green
Light Source
Visible high-power Led and NVG compatible infrared LED
Minimum Autonomy
High-intensity: 120hrs ;     Medium-intensity: 240hrs ;    Low-intensity: 360hrs
Latitude Range
55°S to 55°N
On/Off Level
60/100 Lux
Lifespan of LEDS
up to 50,000 Hours
Solar panel
Mono-crystalline;Maximum Power 7.2Wp;Efficiency 20%
Battery
Lithium, replaceable;16Ah/7.2V
Lens Material
olycarbonate with Anti-UV
Mounting Option
4 bolts
Weight   /   Waterproof
3.5kg     /     IP65
Temperature Range
-40℃ to +80℃
Quality Assurance
ISO9001:2015
Patents
Chinese patent: 201320285073.0
Options Available
IR LEDs / External Battery Charging Port / Manual Operation

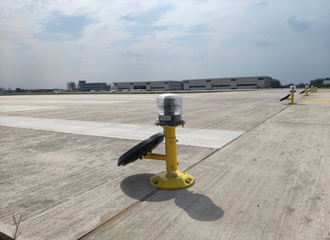

The Solar Runway Light in ANKONG Airport



Dimension Drawings

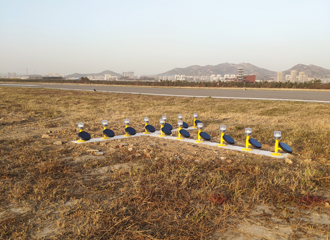

Solar AT-VASIS in Baoji Airport

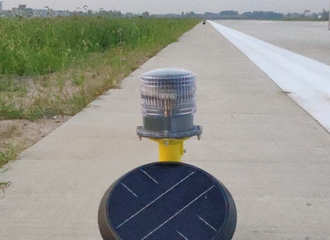

The Solar Threshold Light



Related Products





FAQ



1.What are benefits of the Solar Airport Lighting?

In general,the solar airport lighting is the better choice in the following cases:
• Airfields that are not needed to fly at night every day;
• Airstrips not easily connected the electrical cable or without electricity;
• Airport renovation or temporary airports.

There are many benefits of Solar Airport Lighting System as follows:
              • No High Voltage      • No Isolation Transformers      • No Base Cans     • No cabling      • No Cable Conduits
                              • No Grounding           • No CCRS           • No Vault        • No Bulbs             • No Glass Lens


2. Why choose DOUBLEWISE Solar Airport Lights?

• Low Cost               • Low Maintenance              • Easy Installation and Operation
• Complete Compliance                • Flexible Movement and Deployment                • Advanced Technology


3.Can the remote controller be achieved in the Airport Tower for solar navigation lights?

Yes,these lights can be controlled to turn on/off and adjust the intensity by a wireless control terminal.


4.Is there the Fragile Pole for easy-installation?

Yes,there is a fragile pole which consists of two adapters and a section of PVC pipe and complies with IACO Annex 14,Volume I as follows.
