Double Wise


Solar Taxiway Edge Light

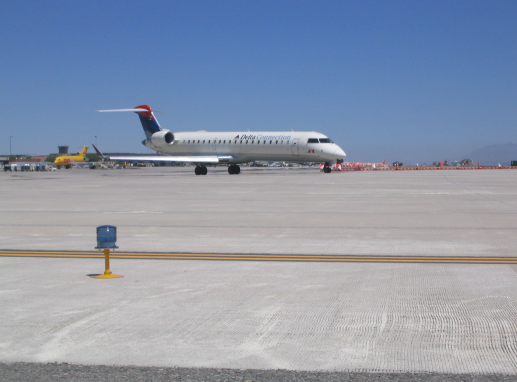

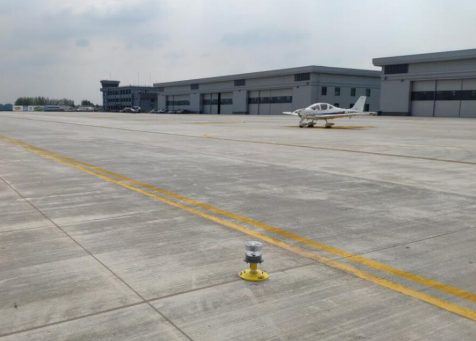

DWSAN301 is a Doublewise wireless elevated led airfield heliport solar powered taxiway edge light with the characteristics of self-contained, durable and anti-UV .It is widely used for Airfield Taxiway Edge Light, Runway End Light, Stopway Light and Perimeter lighting in Helipads etc..



Features and Benefits



Steady-on and its visibility up to 1NM

Available in blue, red, amber, white and green.

Solar panel 1.5Wp, replaceable Ni-HM battery 4.8Ah.

Turns on at dusk and off at dawn automatically.

Completely self-contained and waterproof IP67.

Lens is polycarbonate with anti-UV which is produced by Bayer.

Individual dome can protect the solar panel and raise its efficiency.

Manufactured to ISO9001:2015 QAS and certified CE.



Type Application





Airport Aids to Navigation
Perimeter Lighting
• Taxiway Edge Light
• Fence Lighting
• End Light
• Obstruction Lighting
• Helipad Perimeter Light
• Outline Lighting
• Apron Edge Light
• Marine Navigation Lights





Related Products





FAQ

1.Under what circumstances, the taxiway edge light is more suitable for the use of solar power?

Taxiway edge lights shall be fixed lights showing blue and the intensity of lights should be more than 2cd at least 6° above the horizontal, so these are suitable for solar power supply due to the low power consumption.In particular,the solar taxiway edge light is the better choice in the following cases.

• Airfields that are not needed to fly at night every day;
• Airstrips not easily connected the electrical cable or without electricity;
• Airport renovation or temporary airports.


2. Are there the rechargeable,portable perimeter light for helipads?

DWS 601/RC is designed to comply with the standard of ICAO Annex 14 Volume II.The rechargeable landing light includes the Rechargeable light and its Charger.


3.Can the remote control be achieved in the Airport Tower for solar navigation lights?

Yes,these lights can be controlled to turn on/off and adjust the intensity by a wireless controller in the Airport Tower.


4.Is there the Fragile Pole complied with IACO?

Yes,there is the fragile pole which consists of two adapters and a section of Aluminum Fragile Pole and complies with IACO Annex 14,Volume I as follows.
