LOW-INTENSITY AIRCRAFT WARNING LIGHT

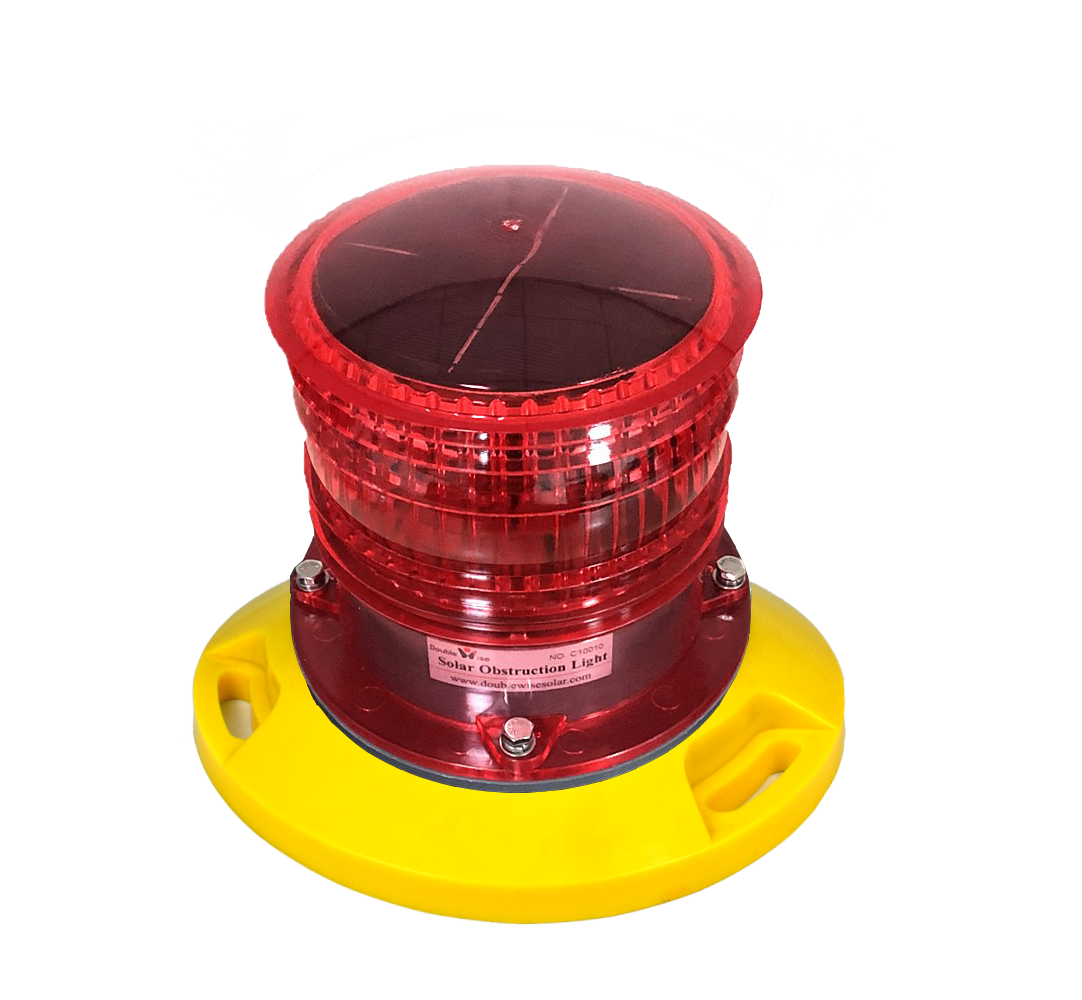

The solar airfield obstacle light DWS301A is an ICAO low-intensity Type A aircraft warning light with the characteristics of solar self-contained, durable and anti-UV . Because Buildings and smaller obstructions located near airports should be marked with steady-burning red lights.,this airport obstruction light is generally used as the Airfield Obstacle Warning on dangerous Prominent Parts . It installs in minutes and requires no maintenance or servicing for up to five years.






Features and Benefits







Red,Steady-on and its intensity is more than 10cd.


Solar panel 1.5Wp, replaceable Ni-HM battery 4.8Ah.


Turns on at dusk and off at dawn automatically.



Charge under nearly all weather conditions and its minimum autonomy up to 70 hrs  from a full charge.


Completely solar self-contained and waterproof IP65.


Lens is polycarbonate with anti-UV which is produced by Bayer.


Individual dome can protect the solar panel and raise its efficiency.


Manufactured to ISO9001:2015 QAS and certified CE.






Specifications







Main Specifications
Model      /     Name
DWS301A      /      Solar Obstacle Light
Standards
ICAO Annex 14 Vol. Ⅰ and FAA AC 70/7460-1k
Intensity
Steady-burning Red,   more than 10cd
Visibility     /    Source
3Km        /       Ultra-intensity LED
Vertical Divergence
±7.5° at 50% intensity
Horizontal Output
360°
Minimum Autonomy
70 Hours
Solar Panel
Mono-crystalline , Maximum Power : 1.5 watts , Efficiency:20%
Battery
Ni-Mh battery, Replaceable , 4.8Ah/2.4V
Lens Material  / Weight
Polycarbonate        /        0.9kg
Waterproof
IP65
Quality Assurance
ISO9001:2015              CE:  CTR090817073E
Patents
Chinese patents:  02224444.1 and 2014304444553






Typical Applications







Buildings and smaller obstructions
Located near Airfields

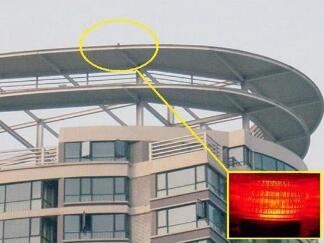

DWS301A in a High-building

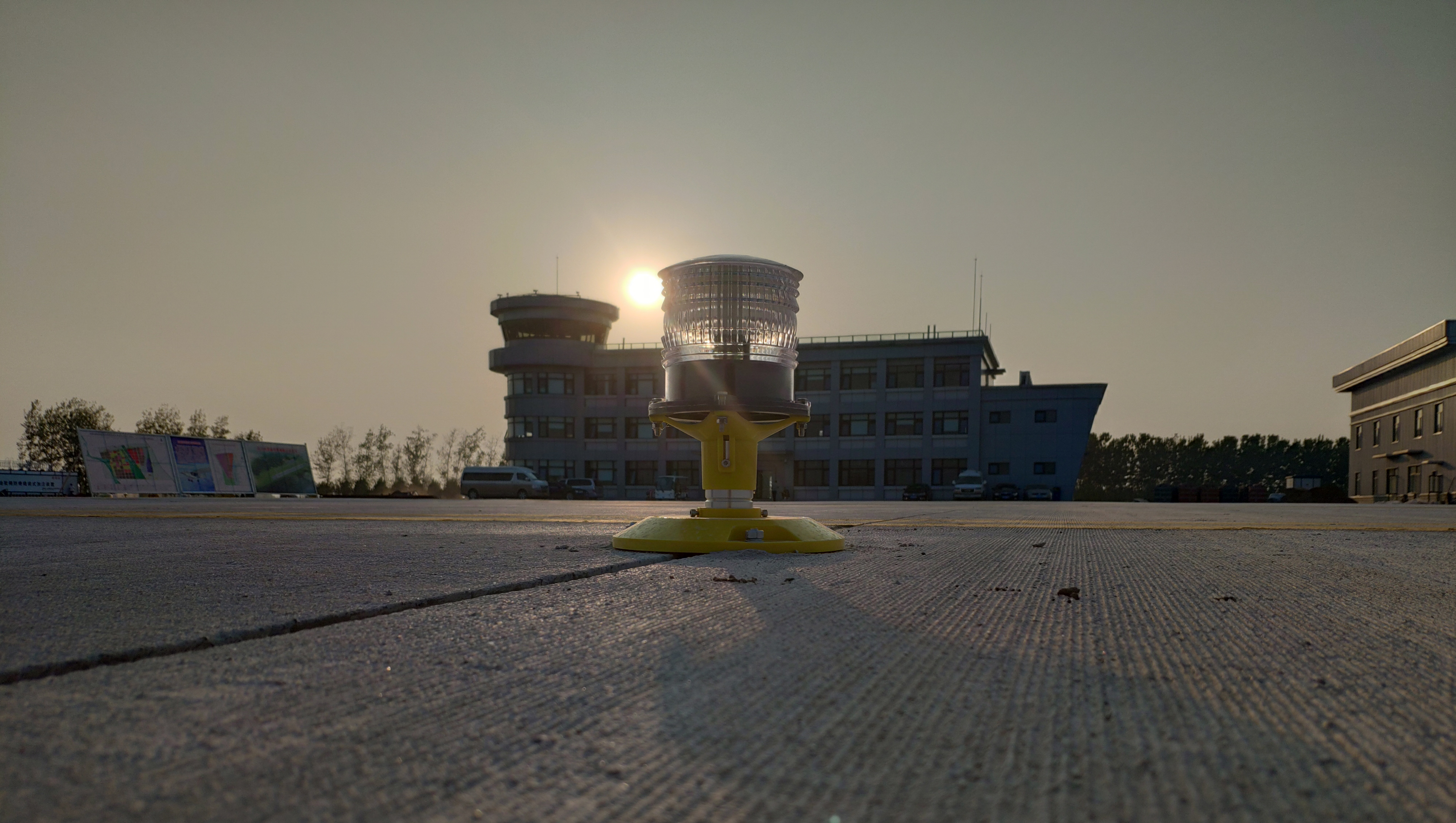

The Obstacle Warning in Zhoukou Airport






Related Products












FAQ







1.How to determine the kind of an obstacle light?

According to ICAO standards,the characteristics of low-intensity obstacle lights are as follows:



Light Type
Color
Signal Type/(flash rate)
Peak Intensity(cd)
Intensity(cd) at given angles
+6°
+10°
Low-intensity,Type A
Red
Fixed
10  Min.
10  Min.
10  Min.
(fixed obstacle)
Low-intensity,Type B
Red
Fixed
32  Min.
32  Min.
32  Min.
(fixed obstacle)
Low-intensity,Type C
Yellow/Blue
Flashing
40     Min.
(mobile obstacle)
(60~90fpm)
400  Max.
Low-intensity,Type D
Yellow
Flashing
200  Min.
(Follow-me Vehicle)
(60~90fpm)
400  Max.


2. How to install the solar obstruction light?

There are two installation methods:



2.1. Direct installation

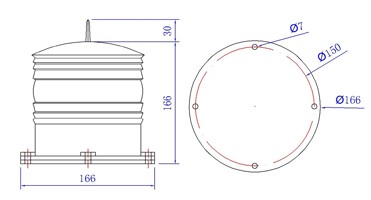

The Drawing and Hole map of DWS301A are as follows:

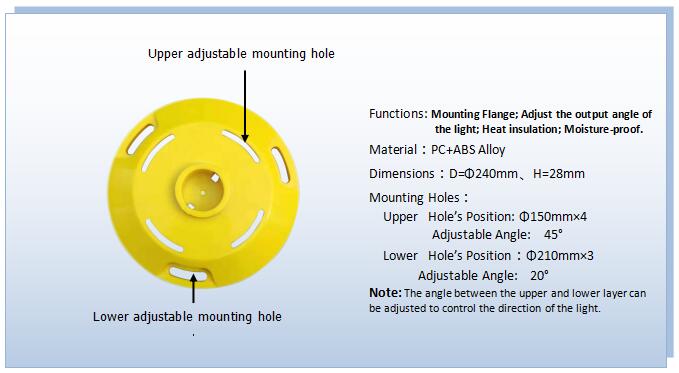

2.2. With the Flangebase

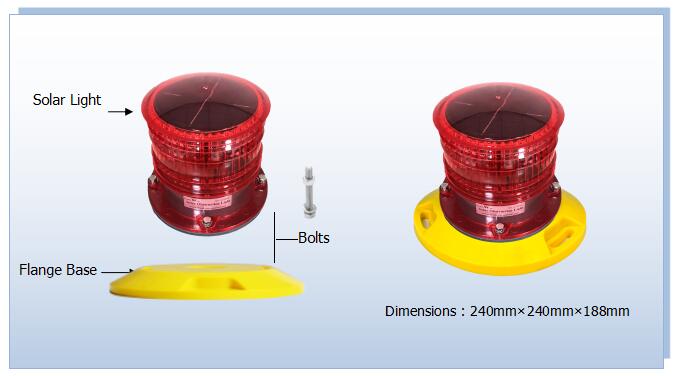

The solar obstruction light DWS301A can also be connected to other structures via a Flangebase, as shown in the figure below.
