FAA L-864 AVIATION OBSTRUCTION LIGHT

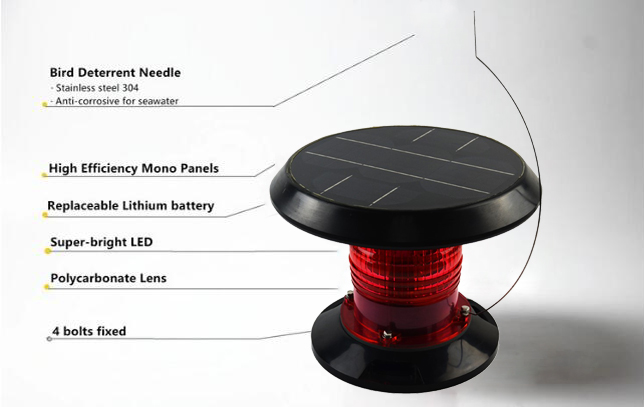

The Solar Medium-intensity Obstacle Light DWS702S is a Solar Powered LED Aviation Obstruction Light which complies with FAA L-864 and ICAO Medium-intensity Type B. The self-contained design makes it concision, reliability, durability and easy-operation. Because its shape looks like a mushroom, it also is called as "Solar Mushroom Light". It can complete the synchronization of many lamps by GPS and is widely used in Aviation Warning of Iron towers,Chimneys,Buildings,Crane etc.













Features and Benefits







ICAO/FAA flashing patterns and medium-intensity



Solar panel 7.2Wp, replaceable Lithium battery 16Ah/7.2V.



Light Output :   360 ° or Any Sector.



Turns on at dusk and off at dawn automatically or by switch.



Completely solar self-contained and waterproof IP67.



To Charge under nearly all weather conditions and up to 200 hrs of operating capacity from a full charge.



Lens is poly-carbonate with anti-UV which is produced by Bayer.



Manufactured to ISO9001:2015 QAS.







Specifications







Main Specifications
Model      /     Name
DWS702S      /      Medium-intensity Solar Obstruction Light
Peak Intensity
2000 cd ±25%
Source
Ultra-intensity LED
Vertical Divergence
±7.5° at 50% intensity
Horizontal Output
360°
Minimum Autonomy
200 Hours
Solar Panel
Mono-crystalline , Maximum Power : 7.2 watts , Efficiency:20%
Battery
Lithium , 16Ah/7.2V,Replaceable
Lens Material  / Weight
Polycarbonate        /        3.4kg
Waterproof
as per IP67
Patents
Chinese patents: 201320285.73.0 Other patents pending
Optional
GPS Synchronization

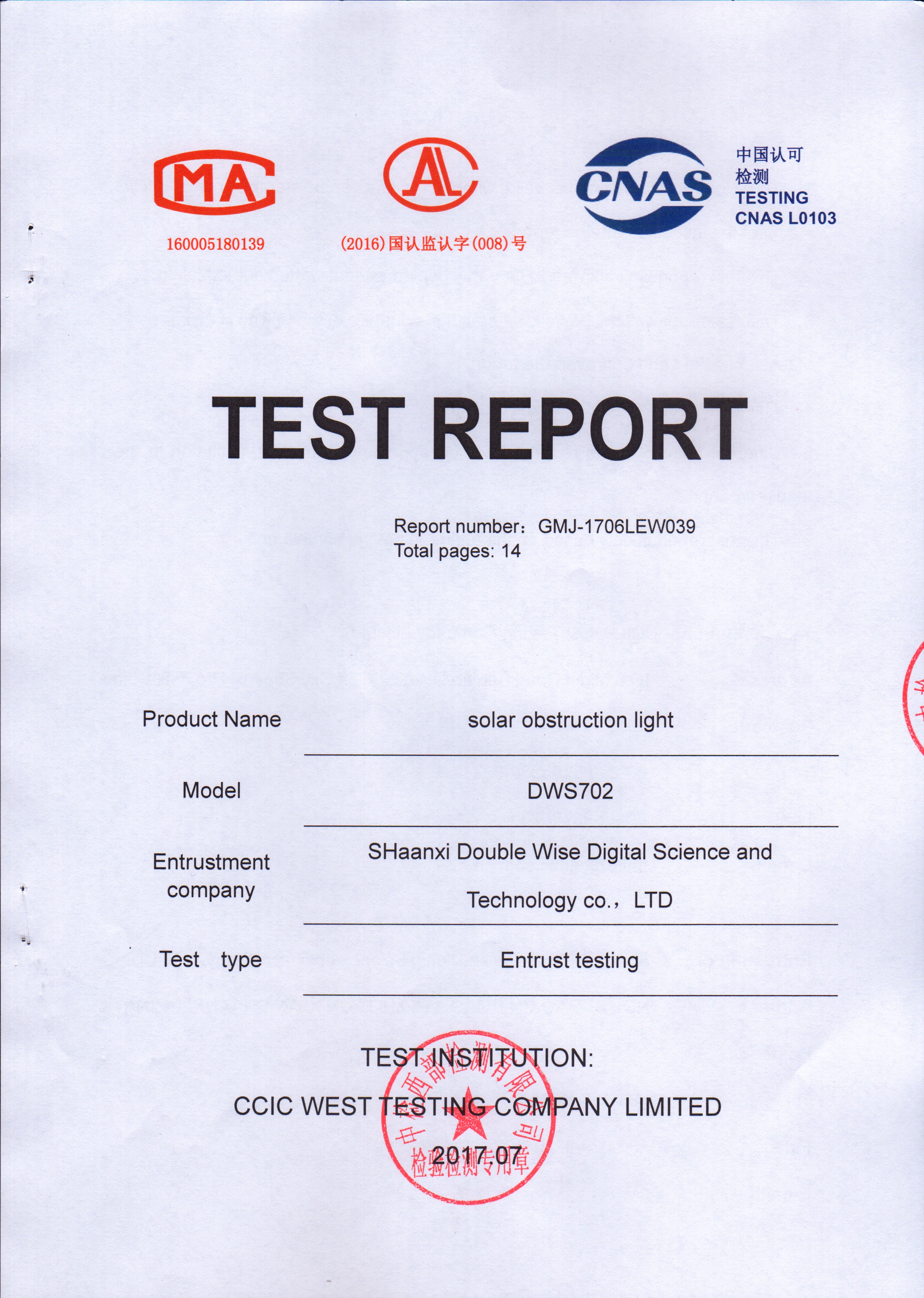

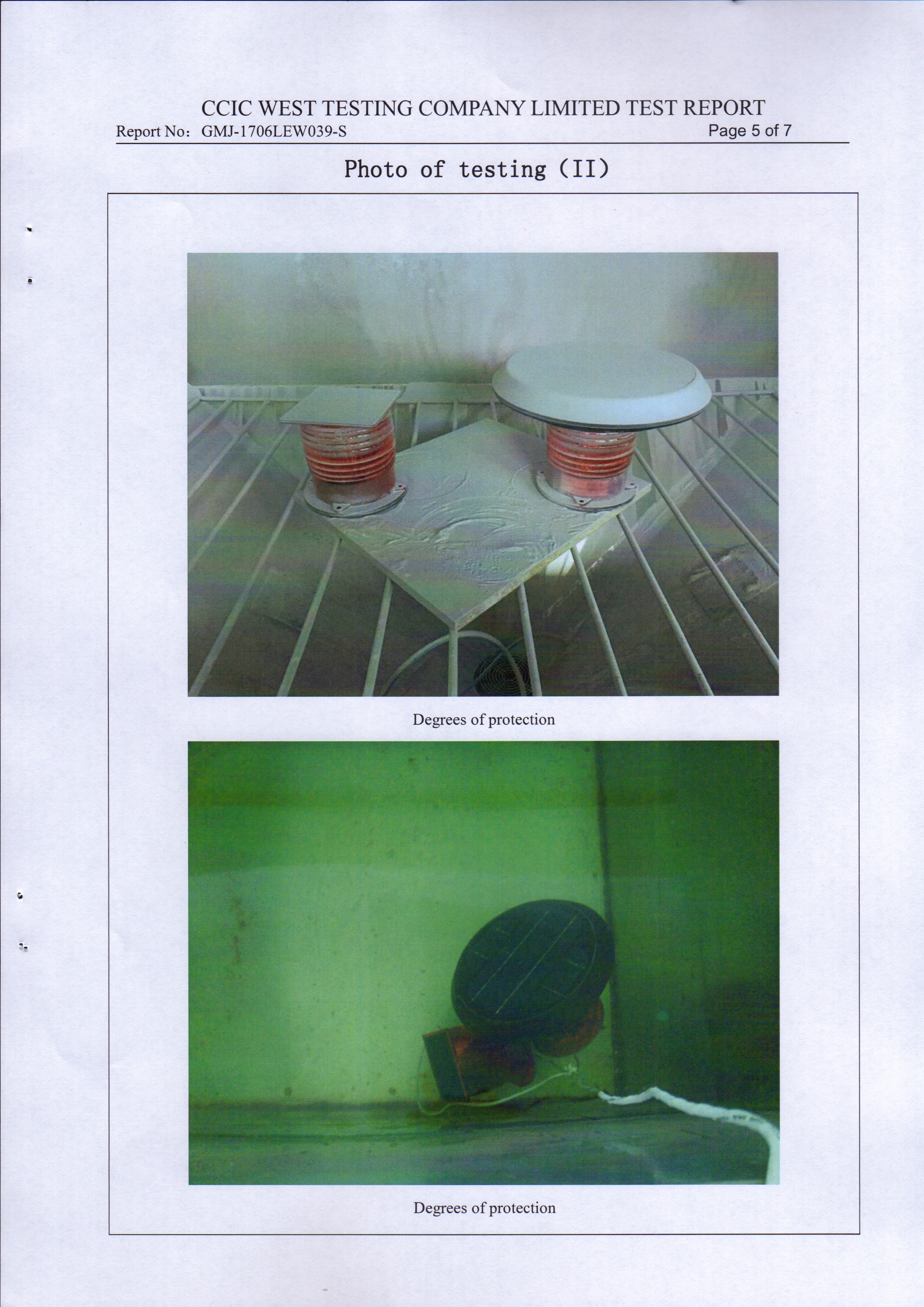

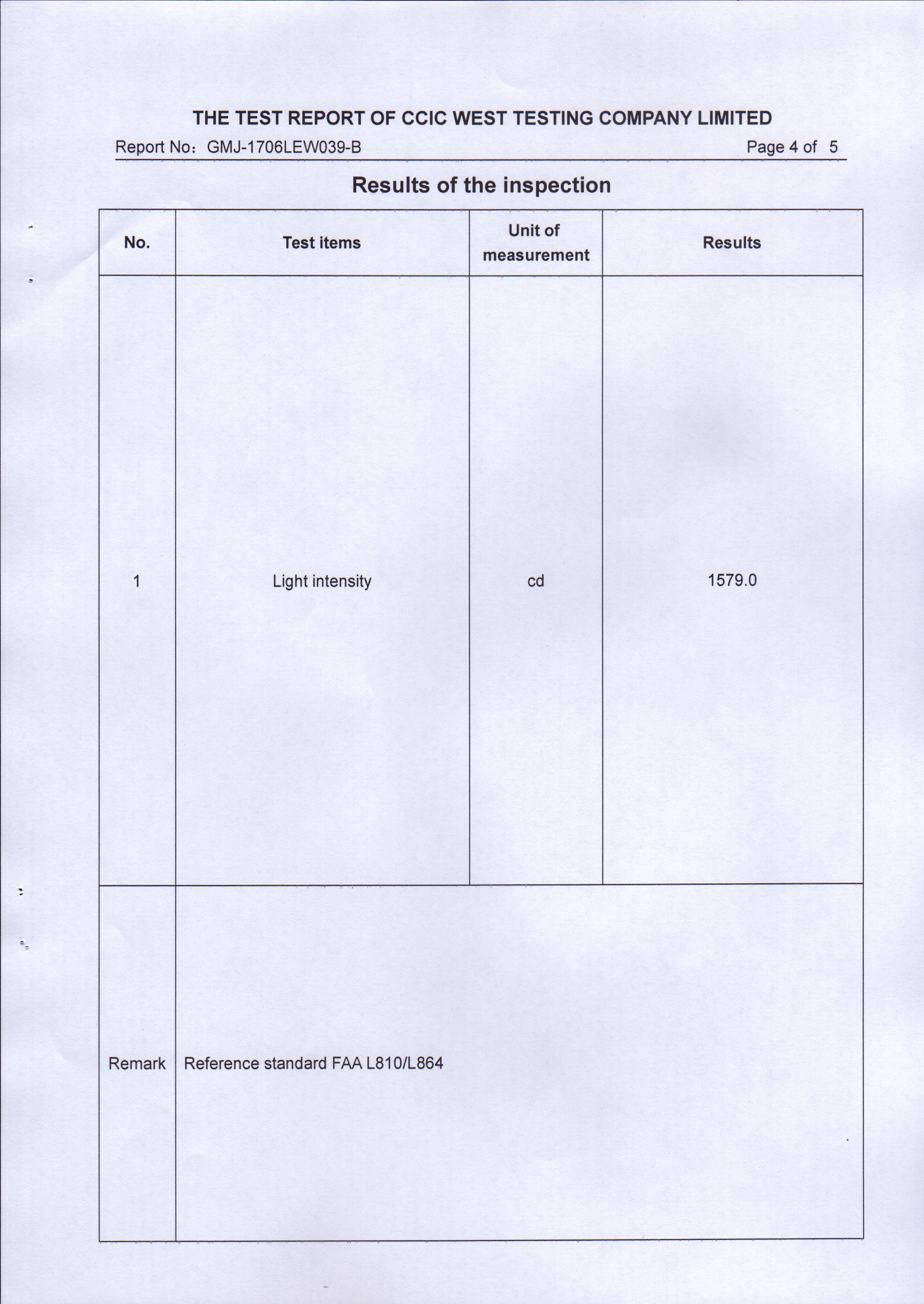

Test Report By CCIC













Typical Applications













Related Products

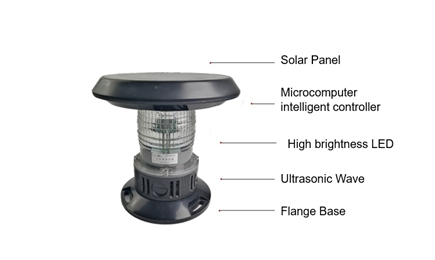

Medium-intensity Solar Obstruction Light with a Bird Repeller



DWS702AB is a Medium-intensity aviation obstruction light which complies with ICAO Annex 14 Volume Ι. Because  an electronic bird repeller is added inside it, it becomes a solar aviation obstruction light with bird repellent function.

The electronic bird repellent device produces extremely effective audio-visual threats that frighten, irritate, and disorient birds, forcing them to seek calmer, untreated areas. It can condition pest birds to stay away from treated areas for good.

The light is designed as solar self-contained which can easily be synchronized through GPS. It is especially suitable for large-scale wind turbines, military and civil airports, high-voltage power towers and other occasions with the requirements of preventing harmful birds from invading. It has the characteristics of self charging, durability, UV resistance and convenient installation.





FAQ







1. How to determine the kind of an obstacle light?


According to ICAO standards,the characteristics of obstacle lights are as follows:

     Light Type                 Color           Signal Type/(flash rate)    Peak Intensity(cd)    Intensity(cd) at given angles                                                                                                                                                                                                                                            +6°               +10°
Low-intensity,Type A        Red                      Fixed                            10  Min.                   10 Min.          10  Min.
  (fixed obstacle)
Low-intensity,Type B        Red                      Fixed                            32  Min.                    32 Min.          32  Min.
  (fixed obstacle)
Low-intensity,Type C       Yellow/Blue         Flashing                          40     Min.
   (mobile obstacle)                                       (60~90fpm)                   400  Max.
Low-intensity,Type D       Yellow                  Flashing                          200  Min.
 Follow-me Vehicle                                        (60~90fpm)                   400  Max.
Medium-intensity,Type B       Red                  Flashing                          2000±25%
                                                                        (20~60fpm)



2. How to complete the synchronization of all the lights in an area?

DWS702S accomplishes the synchronization of many lights through the GPS.Because this way is wireless,the number of synchronized lights is unlimited and the cost is more economical than these needed a wire-controller



3. How to install the solar obstruction light?

There are two installation methods:

3.1. Direct installation

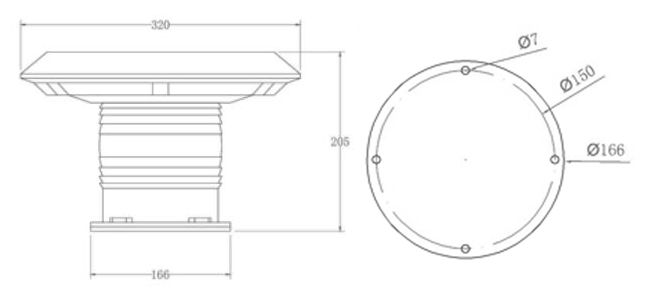

The Drawing and Hole map of DWS702S are as follows:

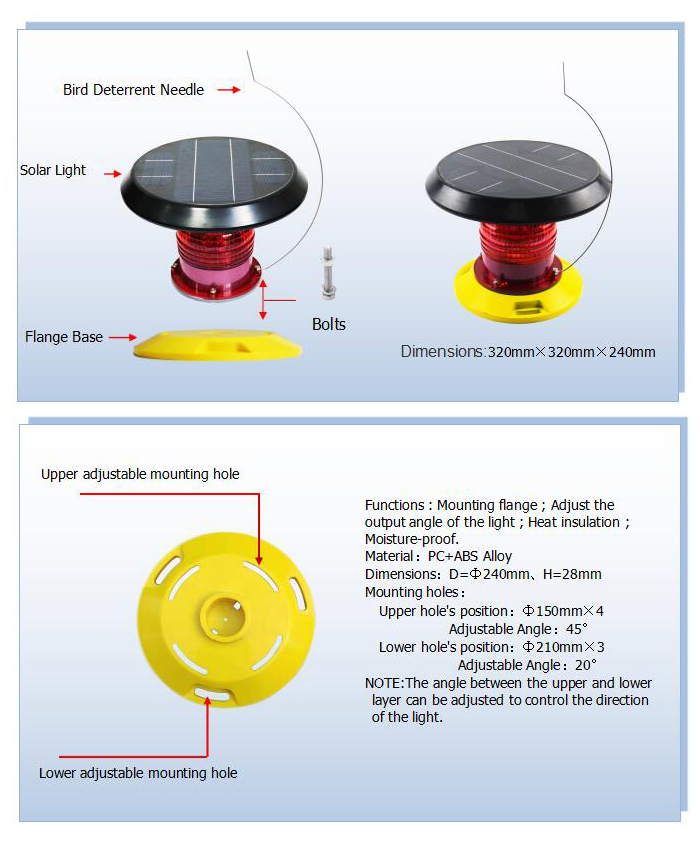

3.2. With the Flangebase

The solar obstruction light DWS702S can also be connected to other structures via a Flangebase, as shown in the figure below.
