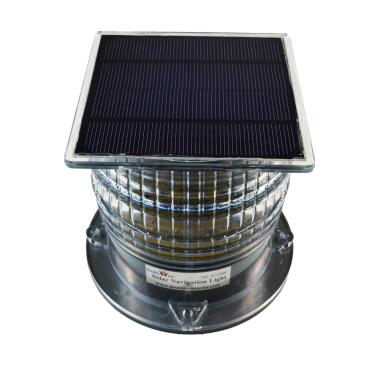

DoubleWise/SOLAR TRICOLOR NAVIGATION LANTERN

DWS201TC is a solar marine lantern with three colors (112.5° Red + 112.5°Green + 135°White = 360°) specially designed for the safety of small boat navigation such as yachts and fishing boats. Its function complies with COLREGS(1972) and equals to the combination of a port light, a starboard light and a stern light. It has the characteristics of self-contained solar, durable ,anti-UV and easy-installation.

Features and Benefits

Steady-on and its visibility: 2NM

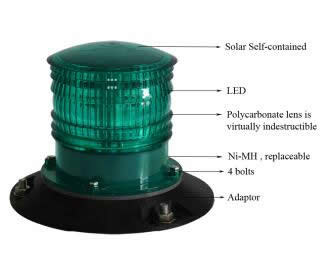

Solar panel 1.1Wp, replaceable Ni-HM battery 2.4Ah/2.4V.

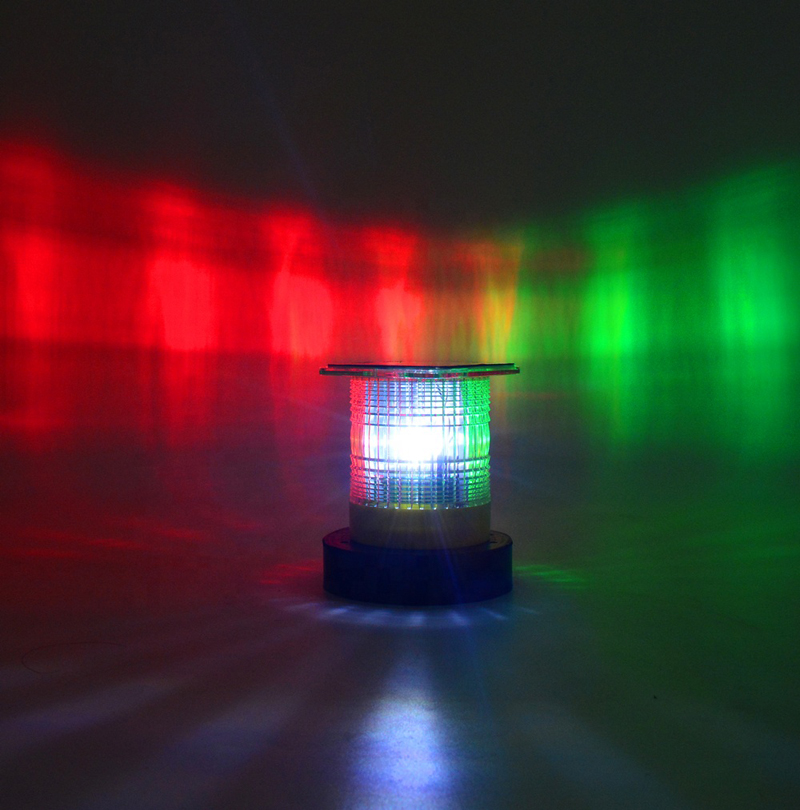

Combined colors: 112.5°Red + 112.5°Green + 135°White

Turns on at dusk and off at dawn automatically.

Completely self-contained and waterproof IP65.

Charge under nearly all weather conditions and up to 100 hours of operating capacity from a full charge.

Lens is polycarbonate with anti-UV which is produced by Bayer.

Manufactured to ISO9001:2015 QAS.

Specifications

SPECIFICATIONS
Light Output	Steady-on, 360° =White 135°+ Red 112.5°+ Green 112.5°
Visibility	2NM
Minimum Autonomy	100hrs
Latitude Range	50°S to 50°N
Source & its Lifespan	LED & up to 50,000 Hours
Solar panels	Mono-crystalline；Maximum Power 1.1Wp；Efficiency 20%
Battery	Ni-Mh , replaceable；2.4Ah/2.4V
Lens Material / Waterproof	Polycarbonate / IP65
Mounting Option	Magnetic base
Dimension / Weight	120mm120mm140mm / 0.6kg
Temperature Range	-40℃ to +80℃

Typical Applications

•	Fishing Boat
•	Yacht
•	Tow Boat
•	Dredger
•	Tug Boat

Related Products


DWS305/3NM	DWS305/MF	DWS305/6NM

FAQ

1.What kind of vessels are suitable for use in solar navigation light?
Using solar navigation lanterns is a best choice for non-powered vessels such as barge,Dredger,Tug or Tow boats etc..

2. Can this lantern easily be turned off when it isn't used for a long period?
Yes,you can easily turn off this lantern by a touch switch in the side of it.We also suggest that you turn off it when it isn't used for a long time.So it is only charged during the day and discharged at night.

3.Is there an attachment that is suitable for a variety of installation methods?

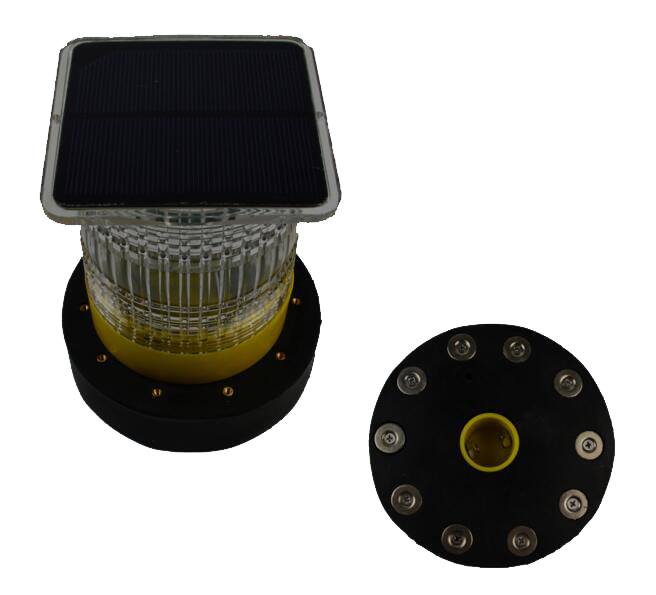

Yes,there is the installing adapter FlangeBase as follows. In order to better heat insulation and waterproof, we recommend to use it.
